Air classifier
  • Air classifier
  • Air classifier

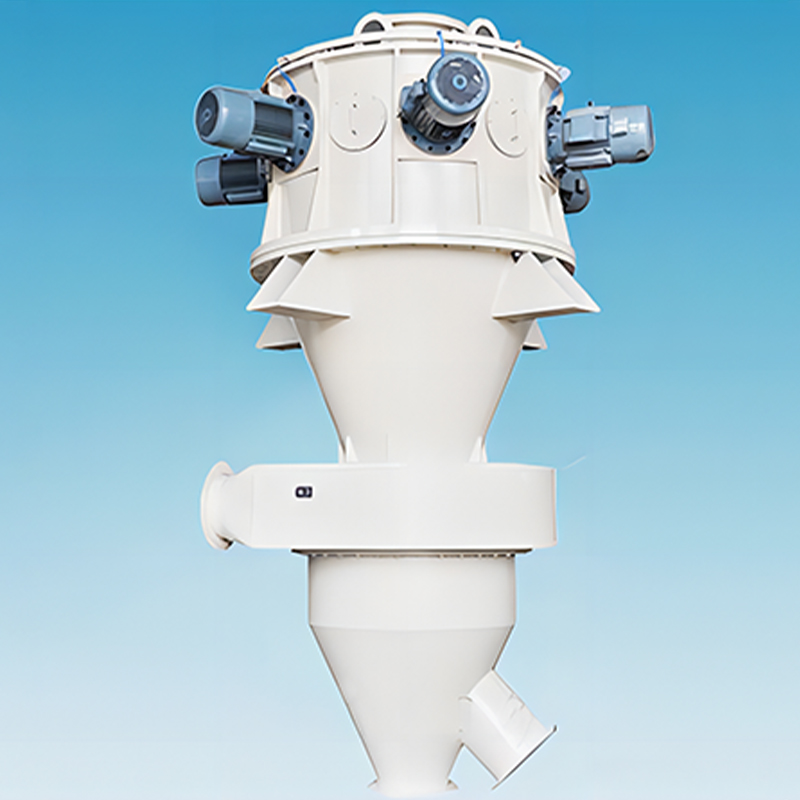

Air classifier

Product particula Size: D50 iugis ab 1 ad 45 µm.
Classification Efficens: 60% ad 90%.
Productio Capacitas: 1 ad 60 t/h.

Features: Materia oritur ab inferiori limbo classificantis in zonam classificationis sub impressione ventilationis. Summus celeritas vis centrifuga generata ab impulsore classificatione materiam separat. Particulae optimae occurrentes quantitatem debitam particulae per intervalla inter scapulas classificans impulsorem transeunt et in cyclone separatore vel pulvere collectore colliguntur, dum crassae particulae descendunt ad portum missionis missionis. Apta ad subtiliorem classificationem productorum micron mediocrium aridarum, inserere potest particulas sphaericas, lanulas, acus-formas, ac particulas densitatum variarum. Celeritas rotoris per frequentiam variabilem refrenari potest, permittens pro flexibili moderamine particulae magnitudinis distributionem.

Applicabilis Industriae: Cibus, Chemicis, Aedificiis Materiis, Metallurgia, Mineralibus, etc.

mitte inquisitionis
PREV：Aeris Classification LDEINDE：Liquorized lecto jet molendini
Product AdvantagesWorking PrincipleTechnical Specifications

Product Commoda

  1. Apta ad subtiliorem classificationem productorum micron mediocrium aridarum, capax sphaericae, lanulae, et acuspiorum parti- cularum, ac particularum densitatum variarum.
  2. Magnitudo particulae productorum classificatorum D97 attingere potest: 2 ad 45 microns, cum commensuratione passiva, ut facile ad mutare genera productum possit.
  3. Classificatio efficientiae (rate extractionis) est 60% ad 80%. Efficiens altior est causa materiae cum bona fluxabili, inferior vero efficiatur.
  4. Turbine mechanismus horizontalis indicans celeritatem altam et praecisam vertex sectionem praebet.
  5. Adhiberi possunt in serie cum aliis instrumentis molentis, ut pila molendinorum, molendinorum pulsum, et molendinorum Raymundi, ad systema claudendum formandum.
  6. Moderatio systematis in PLC utitur cum ostentatione status operantis reali temporis, faciliorem operationem procurans.
  7. Systema sub pressura negativa operatur, cum pulvis emissiones 40 mg/m³ excedens. Apparatus sonitus gradus infra 75 dB(A) tenentur per mensuras sonantias.
  8. Explosio-probationis ratio praesto est, et ad systema circulatio nitrogenium upgraded fieri potest ad necessitates processus processui materiae flammabiles, explosivae et oxidizabiles.

Principium opus

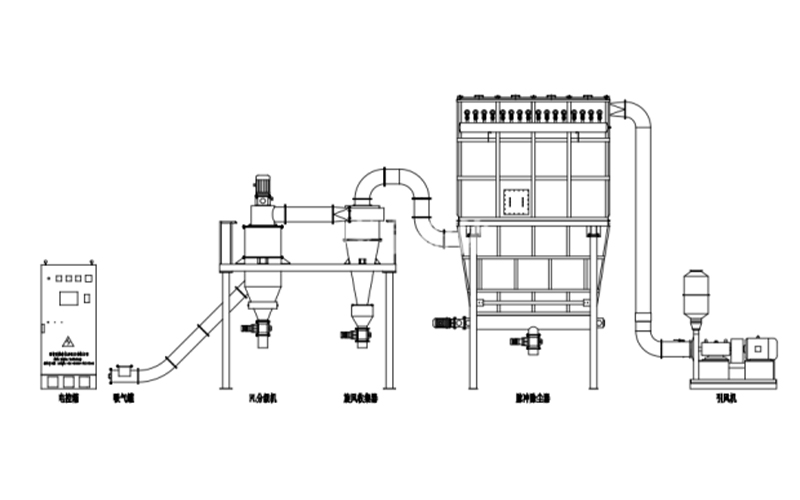

Processus fluxus:

Technical Specifications

FW/HTS Series Air Classifier - Multi-Rotor

Parameter / Specification FW400/3 FW630/3 FW630/6 FW800/6 FW1000/G
Capacitas tractans (t/h) 0.2 - 1.5 1-5 3-10 5-15 8-30
Product Particula Size D97 (μm) 3 - 45 3 - 45 3 - 45 5 - 45 5 - 45
Classification Efficens (%) 60 - 80 60 - 80 60 - 80 60 - 80 60 - 80
Power installed (kW) 60 - 90 135 - 155 250 - 290 290 - 390 500 - 580

FW/HTS Series Air Classifier - Single - Rotor

Parameter / Specification FW200 FW280 FW520 FW630 FW800
Capacitas tractans (kg/h) 10 - 100 20 - 200 100 - 1500 200 - 2500 400 - 4000
Product Particula Size D97 (μm) 3 - 45 3 - 45 3 - 45 3 - 45 5 - 45
Classification Efficens (%) 60 - 80 60 - 80 60 - 80 60 - 80 60 - 80
Power installed (kW) 7-11 15 - 19 23 - 30 52 - 60 67 - 77

FL/ITC Series Air Classifier - Multi - Rotor

Parameter / Specification FL360/3 FL360/4 FL360/6 FL450/3 FL450/6
Capacitas tractans (kg/h) 2000 - 6000 4000 - 8000 3000 - 5000 3000 - 9000 5000 - 12000
Product Particula Size D97 (μm) 5 - 150 5 - 150 5 - 150 8 - 150 8 - 150
Classification Efficens (%) 60 - 90 60 - 90 60 - 90 60 - 90 60 - 90
Classification Motor Power (kW) 33 44 66 45 60

FL/ITC Series Air Classifier - Single - Rotor

Parameter / Specification FL200 FL300 FL360 FL450 FL600
Capacitas tractans (kg/h) 100 - 300 200 - 1000 300 - 1500 1000 - 3000 2000 - 6000
Product Particula Size D97 (μm) 5 - 150 6 - 150 6 - 150 8 - 150 8 - 150
Classification Efficens (%) 60 - 90 60 - 90 60 - 90 60 - 90 60 - 90
Classification Motor Power (kW) 4 7.5 11 15 22
